GDB-24T
GDB-24 Series

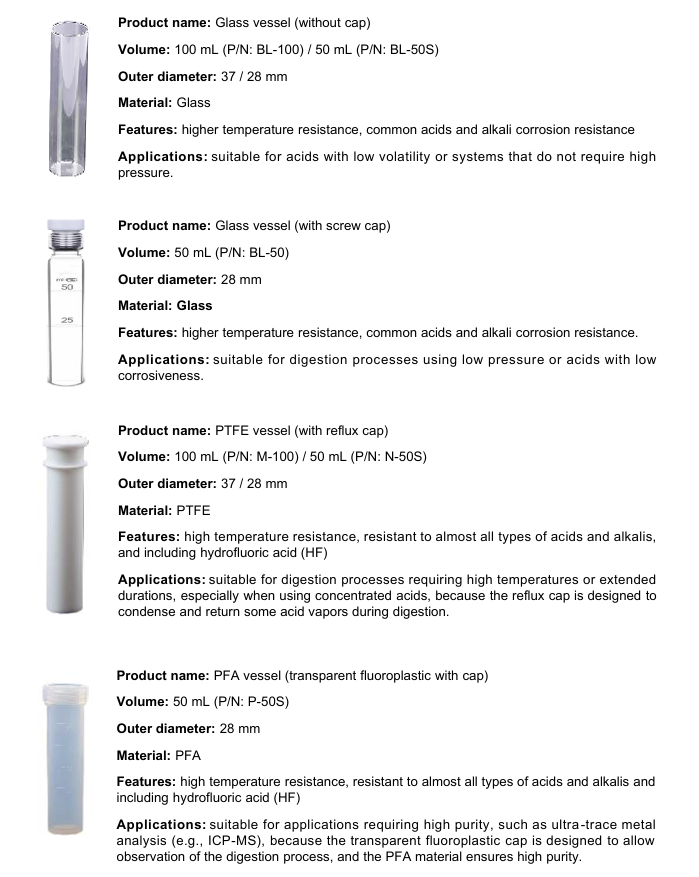

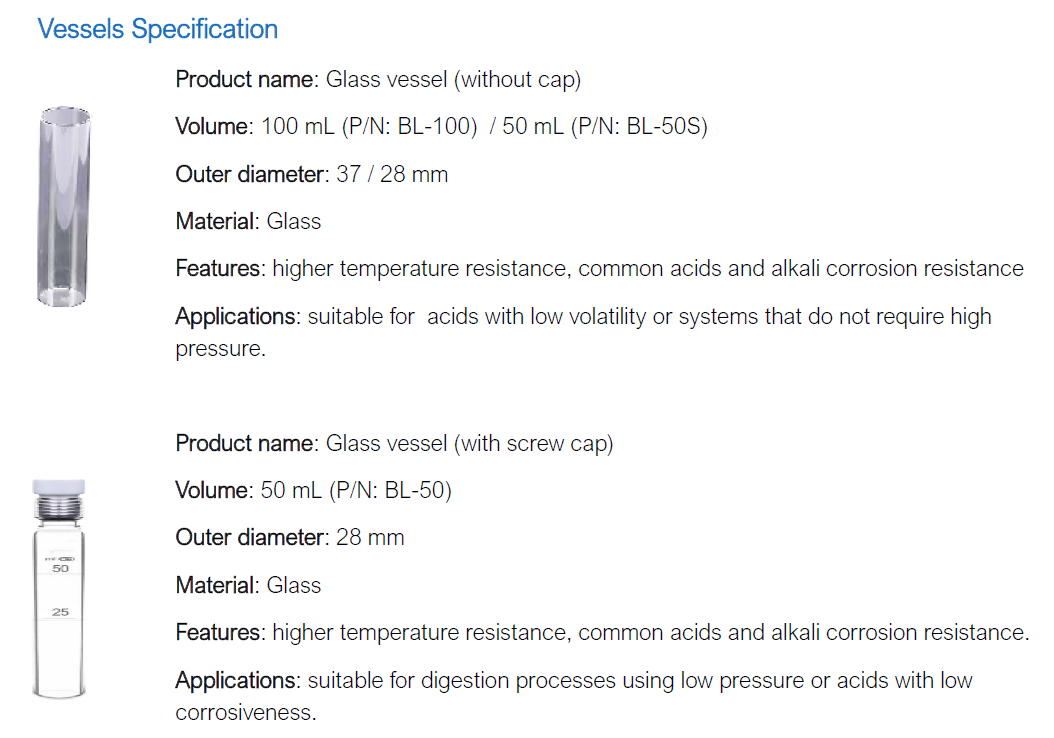

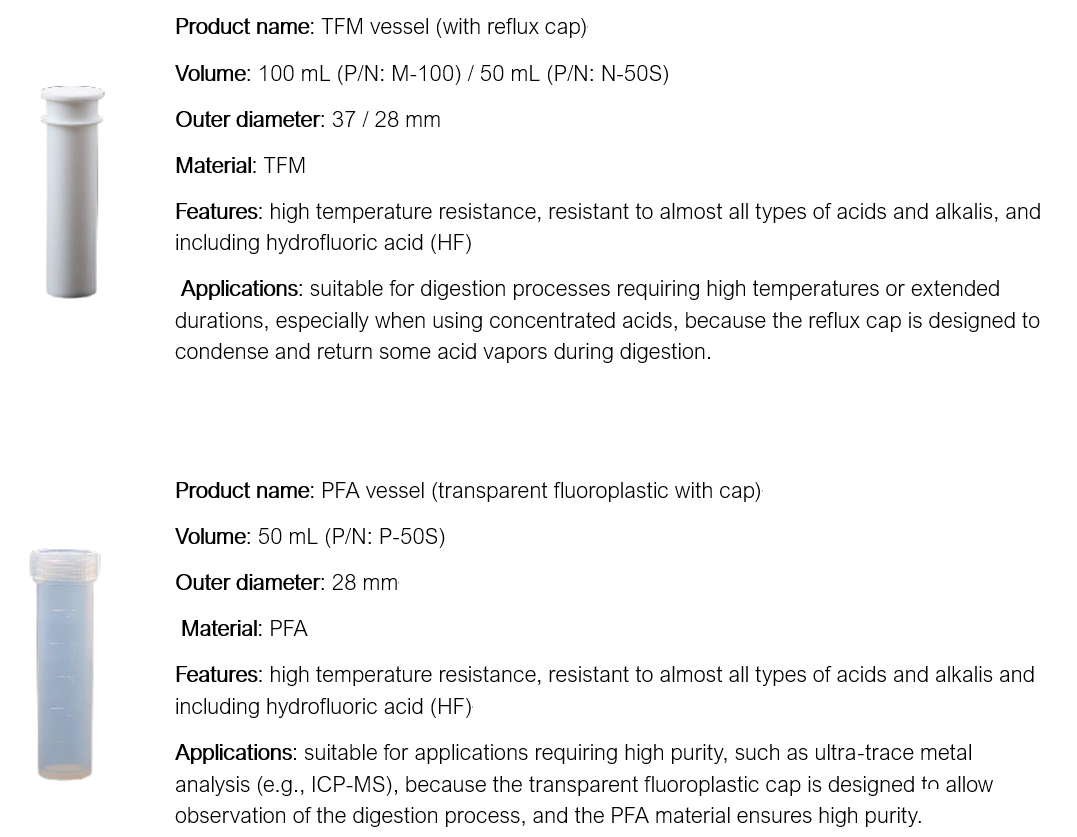

Vessel: 24 positions:
100mL for GDB-24T(Max Tamp.250°C) & GDB-24HT (Max Temp. 450°C)
50mL for GDB-24TS(Max Tamp.250°C) & GDB-24HTS (Max Temp. 450°C)

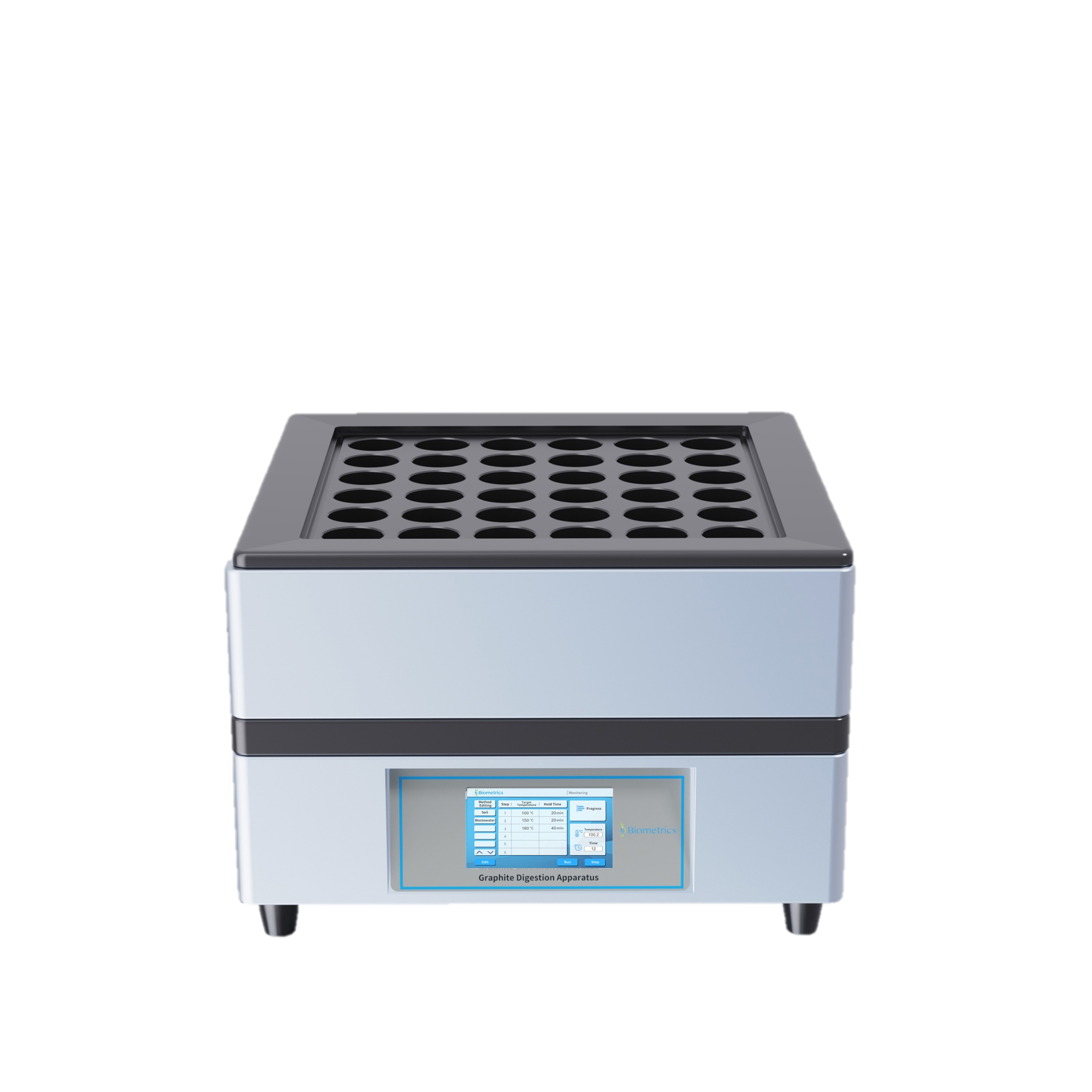

The Graphite Digestion Block is an advanced laboratory instrument designed for rapid and efficient sample digestion using high-temperature infrared radiation and graphite conduction heating technology. Featuring precise temperature control, corrosion-resistant construction, and programmable heating modes, it ensures consistent and reliable sample preparation for chemical analysis across diverse fields such as food, environmental, pharmaceutical, and agricultural research. This instrument can perform complete sample preparation steps, including pre-digestion and digestion, delivering pure and appropriately concentrated solutions suitable for accurate and reliable elemental analysis by ICP, ICP-MS and AAS techniques.
100mL for GDB-24T(Max Tamp.250°C) & GDB-24HT (Max Temp. 450°C)
50mL for GDB-24TS(Max Tamp.250°C) & GDB-24HTS (Max Temp. 450°C)
The Graphite Digestion Block is an advanced laboratory instrument designed for rapid and efficient sample digestion using high-temperature infrared radiation and graphite conduction heating technology. Featuring precise temperature control, corrosion-resistant construction, and programmable heating modes, it ensures consistent and reliable sample preparation for chemical analysis across diverse fields such as food, environmental, pharmaceutical, and agricultural research. This instrument can perform complete sample preparation steps, including pre-digestion and digestion, delivering pure and appropriately concentrated solutions suitable for accurate and reliable elemental analysis by ICP, ICP-MS and AAS techniques.
Key Features
-
High purity graphite material coated with PTFE, uniform heat conduction, special high-temperature, acid and alkali corrosion resistance.
-
The surface is sprayed with multiple layers of corrosion-resistant high-temperature coating.
-

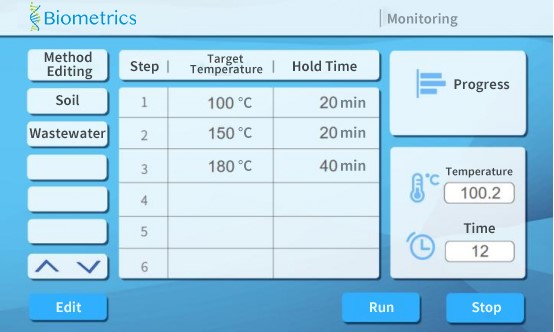

Control the heating program via a 4-inch touchscreen display.
-
Time and temperature can be set independently.
-
With over temperature alarm, over current, voltage alarm.
-
Heats the deep hole uniformly from all sides. Therefore the temperature variation at each point is minimal.
-
Adopt PID control mode.
- Allows multi-step temperature programming with a maximum of 6 steps.
